Arduino 數字鬧鐘及溫濕度顯示器

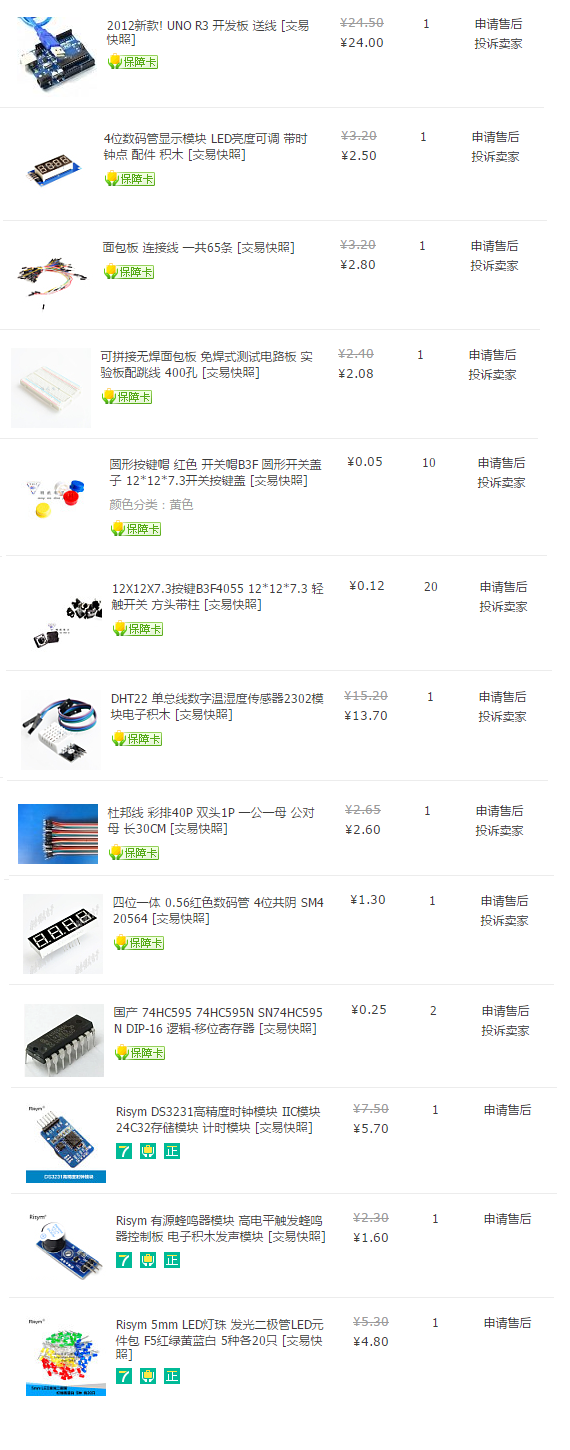

材料大部份由淘寶網購入，列表如下：

外殼在日本城購買：

1. 亞加力膠箱 1 個　　　　　HK$12
2. 木紋色貼紙　　　　　　　HK$5

全部材料費大約為港幣 $90

接駁圖：

實驗短片：

程式碼：

#include <EEPROM.h>

#include "DS3231_Simple.h"

#include "TM1637Display.h"

#include "DHT.h"

// DHT22 connection pins and type

#define DHTPIN 12

#define DHTTYPE DHT22

// 74HC595N connection pins (Digital Pins)

#define DS 4

#define ST 5

#define SH 6

// TM1637 connection pins (Digital Pins)

#define CLK 2

#define DIO 3

DS3231_Simple Clock;

TM1637Display display(CLK, DIO);

DHT dht(DHTPIN, DHTTYPE);

boolean colon = false;

boolean enableAlarm = true;

boolean fireAlarm = false;

int alarm;

struct HM {

  int h;

  int m;

};

#define LED 13

#define BUZZER 7

#define BTN_SET 10

#define BTN_ADD 8

#define BTN_SUB 9

#define BTN_MODE 11

#define BRIGHTNESS 3

#define DELAY_MILLIS 6

unsigned long preMillis = 0;

int btnState;

int lastBtnState = LOW;

unsigned long lastDebounceTime = 0;

float temp, humi;

unsigned long preReadTemp = 0;

byte mode = 1;

const int D[] = {A3,A2,A1,A0};

// Setup 7 segment display (common cathode)

int seg[12][7] = {{1,1,1,1,1,1,0},    // 0

                  {0,1,1,0,0,0,0},    // 1

                  {1,1,0,1,1,0,1},    // 2

                  {1,1,1,1,0,0,1},    // 3

                  {0,1,1,0,0,1,1},    // 4

                  {1,0,1,1,0,1,1},    // 5

                  {1,0,1,1,1,1,1},    // 6

                  {1,1,1,0,0,0,0},    // 7

                  {1,1,1,1,1,1,1},    // 8

                  {1,1,1,1,0,1,1},    // 9

                  {1,0,0,0,0,1,1},    // c

                  {1,1,0,0,1,1,1}     // P

                 };

void setup() {

  Clock.begin();

  dht.begin();

  temp = dht.readTemperature();

  humi = dht.readHumidity();

  alarm = readAlarm();

  pinMode(BTN_SET, INPUT_PULLUP);

  pinMode(BTN_ADD, INPUT_PULLUP);

  pinMode(BTN_SUB, INPUT_PULLUP);

  pinMode(BTN_MODE, INPUT_PULLUP);

  pinMode(BUZZER, OUTPUT);

  pinMode(LED, OUTPUT);

  pinMode(DS, OUTPUT);

  pinMode(ST, OUTPUT);

  pinMode(SH, OUTPUT);

  for (int i = 0; i < 4; i++) {

    pinMode(D[i], OUTPUT);

  }

}

void loop() {

  uint8_t segto;

  int btn0, btn1, btn2, btn3;

  DateTime now;          // Create a variable to hold the data

  now = Clock.read();    // Ask the clock for the data.

  display.setBrightness(BRIGHTNESS);



  int t = now.Hour * 100 + now.Minute;

  display.showNumberDec(t, true);   // Display four digits t with leading zeroes

  /*/ Blink the colon each second

  if (millis() - preMillis >= 500) {

    preMillis = millis();

    colon = !colon;

  }

  if (colon) {

    segto = 0x80 | display.encodeDigit((t / 100) % 10);

    display.setSegments(&segto, 1, 1);

  }

  segto = 0x80 | display.encodeDigit((t / 100) % 10);

  display.setSegments(&segto, 1, 1);

  */

  // Turn ON or OFF alarm light

  if (enableAlarm) digitalWrite(LED, HIGH); else digitalWrite(LED, LOW);



  btn0 = digitalRead(BTN_MODE);

  btn1 = digitalRead(BTN_SET);

  btn2 = digitalRead(BTN_ADD);

  btn3 = digitalRead(BTN_SUB);

  // Set + Add button triggering set alarm

  if (btn1 == LOW && btn2 == LOW) setAlarm();



  // Set + Sub button triggering set clock

  if (btn1 == LOW && btn3 == LOW) setClock(now);

  // Mode + Add button triggering set date

  if (btn0 == LOW && btn2 == LOW) setDate(now);

  // Add + Sub button enable or disable alarm

  if (btn2 == LOW && btn3 == LOW) enableAlarm = !enableAlarm;



  // Monitor the Mode Button

  int reading = digitalRead(BTN_MODE);

  if (reading != lastBtnState) lastDebounceTime = millis();

  if ((millis() - lastDebounceTime) > 50) {

    if (reading != btnState) {

      btnState = reading;

      if (btnState == LOW) {

        mode++;

        if (mode > 3) mode = 1;

      }

    }

  }

  lastBtnState = reading;



  // Check Alarm

  if (t == alarm && enableAlarm) fireAlarm = true;

  if (fireAlarm) handleFireAlarm();

  if (millis() - preReadTemp > 60000) {

    preReadTemp = millis();

    temp = dht.readTemperature();

    humi = dht.readHumidity();

    //Serial.print("Temp: "); Serial.println(temp);

    //Serial.print("Humi: "); Serial.println(dht.readHumidity());

  }

  displayInfo(now);

}

// ***********************************

// ***       End of Main loop      ***

// ***********************************

void setClock(DateTime rtc) {

  int h = rtc.Hour * 100;

  int m = rtc.Minute;

  struct HM hm = adjustTime(h, m);

  if (hm.h == -1) return;       // Cancel operation if Mode button is pressed

  DateTime t;

  t.Hour = hm.h / 100;

  t.Minute = hm.m;

  t.Second = 0;

  t.Day = rtc.Day;

  t.Month = rtc.Month;

  t.Year = rtc.Year;

  Clock.write(t);

}

void setDate(DateTime rtc) {

  delay(1000);

  DateTime t;

  int day = rtc.Day;

  int month = rtc.Month;

  int year = rtc.Year;

  day = adjustDMY(day, 'd');

  month = adjustDMY(month, 'm');

  year = adjustDMY(year, 'y');

  t.Day = day;

  t.Month = month;

  t.Year = year;

  t.Hour = rtc.Hour;

  t.Minute = rtc.Minute;

  t.Second = rtc.Second;

  Clock.write(t);

}

int adjustDMY(int n, char dmy) {

  while (true) {

    outputNumbers(n, 'd');

    int add = digitalRead(BTN_ADD);

    int sub = digitalRead(BTN_SUB);

    int set = digitalRead(BTN_SET);

    delay(120);

    if (add == LOW) {

      n++;

      if (dmy == 'd' && n > 31) n = 1;

      if (dmy == 'm' && n > 12) n = 1;

      if (dmy == 'y' && n > 99) n = 0;

    }

    if (sub == LOW) {

      n--;

      if (dmy == 'd' && n < 1) n = 31;

      if (dmy == 'm' && n < 1) n = 12;

      if (dmy == 'y' && n < 0) n = 99;

    }

    if (set == LOW) break;

  }

  return n;

}

int readAlarm() {

  int eepromAddr = 0;

  int h = EEPROM.read(eepromAddr) * 100;

  eepromAddr++;

  int m = EEPROM.read(eepromAddr);

  return (h + m);

}

void setAlarm() {

  int t = readAlarm();

  struct HM hm = adjustTime((t / 100) * 100, (t % 100));

  if (hm.h == -1) return;       // Cancel operation if Mode button is pressed

  int eepromAddr = 0;

  EEPROM.write(eepromAddr, hm.h/100);

  eepromAddr++;

  EEPROM.write(eepromAddr, hm.m);

  alarm = readAlarm();

  enableAlarm = true;

}

void handleFireAlarm() {

  tone(BUZZER, 1000);

  delay(50);

  tone(BUZZER, 500);

  delay(10);

  int b1 = digitalRead(BTN_ADD);

  int b2 = digitalRead(BTN_SUB);

  delay(40);

  if (b1 == LOW && b2 == LOW) {

    enableAlarm = false;

    fireAlarm = false;

    noTone(BUZZER);

  }

}

struct HM adjustTime(int h, int m) {

  int t = h;

  byte flag = 1;

  struct HM hourMin;

  delay(300);           // Make a delay to avoid memory of last buttons state

  while (true) {

    display.setBrightness(0);

    display.showNumberDec(t, true);

    delay(70);

    DateTime now = Clock.read();   // Ask the clock for the data.

    displayInfo(now);

    display.setBrightness(BRIGHTNESS);

    display.showNumberDec(t, true);

    delay(70);

    int buttonRead = digitalRead(BTN_SET);

    int btnCancel = digitalRead(BTN_MODE);

    if (btnCancel == LOW) {

      delay(100);       // Make a delay to avoid memory of last buttons state

      hourMin.h = -1;

      hourMin.m = -1;

      return hourMin;

    }

    if (buttonRead == LOW) {

      if (flag == 2) {

        hourMin.h = h;

        hourMin.m = m;

        return hourMin;

        break;

      }

      else {

        flag++;

        t = m;

      }

    }

    int add = digitalRead(BTN_ADD);

    int sub = digitalRead(BTN_SUB);

    if (add == LOW) {

      if (flag == 1) {

        t += 100;

        if (t > 2300) t = 0;

        h = t;

      }

      else {

        t++;

        if (t > 59) t = 0;

        m = t;

      }

    }

    if (sub == LOW) {

      if (flag == 1) {

        t -= 100;

        if (t < 0) t = 2300;

        h = t;

      }

      else {

        t--;

        if (t < 0) t = 59;

        m = t;

      }

    }

  }

}

void outputNumbers(float num, char type) {

  int digit[] = {0,0,0,0};

  digit[0] = (int) num / 10;

  digit[1] = (int) num % 10;

  digit[2] = (int) (num * 10) % 10;

  int x = (num >= 10) ? 0 : 1;

  for (int i = x; i < 3; i++) {

    if (i == 1){

      displayOneDigit(i, digit[i], true);

    }

    else {

      displayOneDigit(i, digit[i], false);

    }

    delay(DELAY_MILLIS);

  }

  // Output Celsius or % sign

  if (type == 't') {

    displayOneDigit(3, 10, false);

  }

  else if (type == 'h') displayOneDigit(3, 11, false);

}

void displayOneDigit(int digit, int number, boolean dot) {

  // Turn off all digits

  for (int i = 0; i < 4; i++) {

    digitalWrite(D[i], HIGH);

  }

  fire_595_CLK();

  fire_595_LATCH();

  for (int b = 0; b < 7; b++) {

    digitalWrite(DS, seg[number][b]);

    fire_595_LATCH();

  }

  digitalWrite(DS, dot);

  fire_595_LATCH();

  fire_595_CLK();

  // Turn on the appropriate digit on the display

  digitalWrite(D[digit], LOW);

}

// Send clock rising signal

void fire_595_CLK() {

  digitalWrite(ST, HIGH);

  digitalWrite(ST, LOW);

}

// Send latach rising signal

void fire_595_LATCH() {

  digitalWrite(SH, HIGH);

  digitalWrite(SH, LOW);

}

void displayInfo(DateTime rtc) {

  switch (mode) {

    case 1:

      outputNumbers(temp, 't');

      break;

    case 2:

      outputNumbers(humi, 'h');

      break;

    case 3:

      int day = rtc.Day;

      int month = rtc.Month;

      if (month > 9) {

        displayOneDigit(0, (month/10), false);

        delay(DELAY_MILLIS);

        displayOneDigit(1, (month%10), true);

        delay(DELAY_MILLIS);

      }

      else {

        displayOneDigit(0, (month), true);

        delay(DELAY_MILLIS);

      }

      displayOneDigit(2, (day/10), false);

      delay(DELAY_MILLIS);

      displayOneDigit(3, (day%10), false);

  }

}
